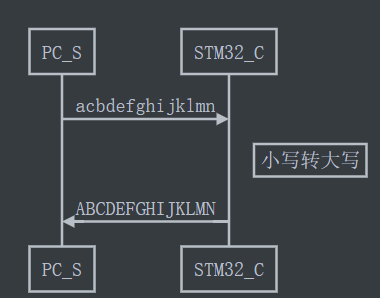

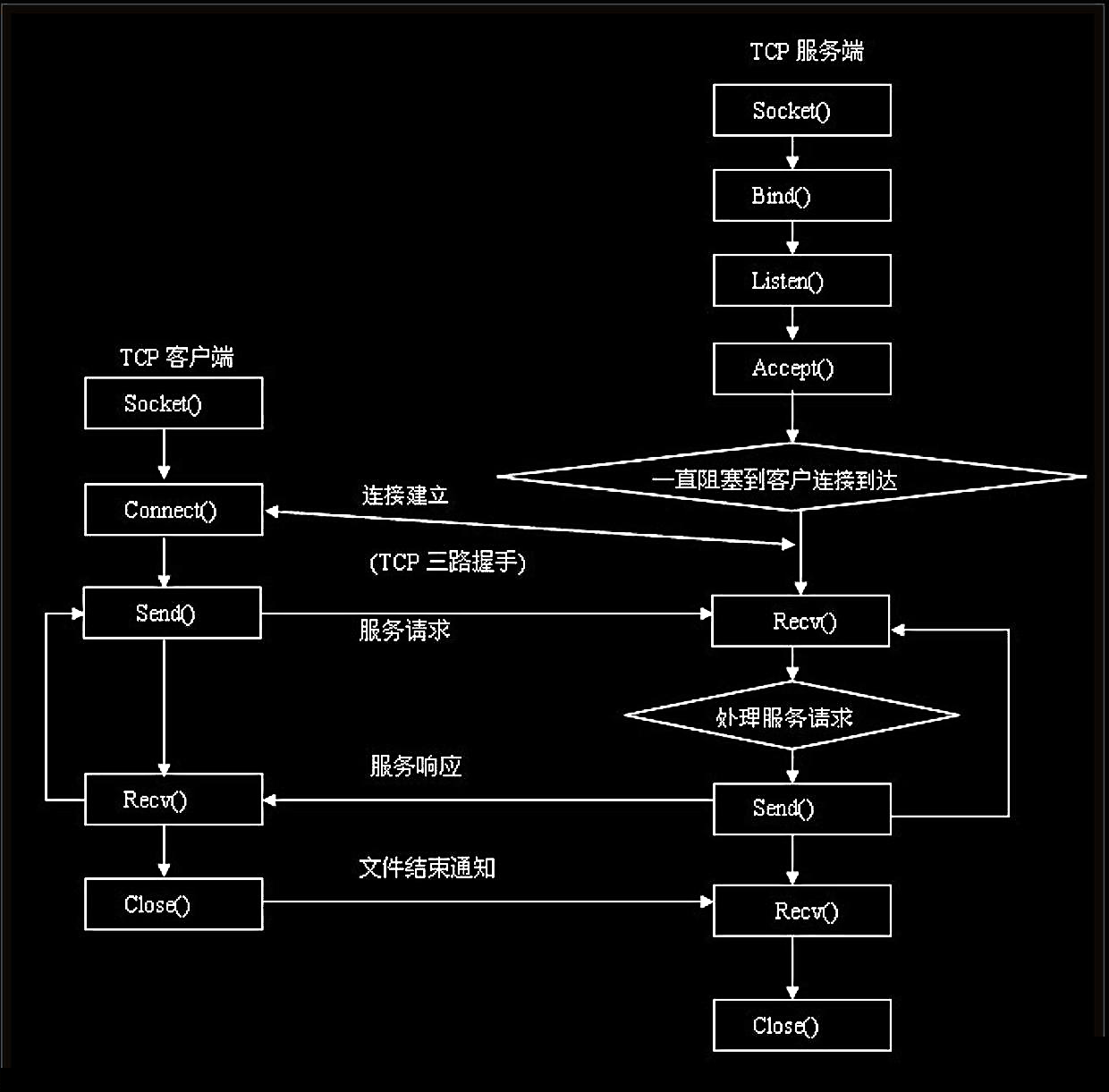

1.C/S模型

2.Client 端功能分析

tcp_client.c

#include "tcp_client.h"
#include "tcp_server.h"
#include "lwip/sockets.h"
#include <stdio.h>

static char ReadBuff[BUFF_SIZE];
void vTcpClient_Task(void)
{
	int 	 cfd, n, i;
	struct sockaddr_in server_addr;

	//创建socket
	cfd = socket(AF_INET, SOCK_STREAM, 0);

	server_addr.sin_family 			= AF_INET;
	server_addr.sin_port   			= htons(SERVER_PORT);
	server_addr.sin_addr.s_addr = inet_addr(SERVER_IP);
	//连接服务器
	connect(cfd, (struct sockaddr*)&server_addr, sizeof(server_addr));
	printf("server is connect ok\r\n");

	while(1){
		//等待服务器发送数据
		n = read(cfd, ReadBuff, BUFF_SIZE);
		//进行大小写转换
		for(i = 0; i < n; i++){

			ReadBuff[i] = toupper(ReadBuff[i]);
		}
		//写回服务器
		write(cfd, ReadBuff, n);
	}
}

tcp_client.h

#ifndef _TCP_CLIENT_H_
#define _TCP_CLIENT_H_

#include "main.h"

void vTcpClient_Task(void);

#endif

freertos.c

#include "FreeRTOS.h"
#include "task.h"
#include "main.h"
#include "cmsis_os.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <stdio.h>
#include "tcp_server.h"
#include "tcp_client.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN Variables */

/* USER CODE END Variables */
/* Definitions for defaultTask */
osThreadId_t defaultTaskHandle;
const osThreadAttr_t defaultTask_attributes = {
  .name = "defaultTask",
  .stack_size = 128 * 4,
  .priority = (osPriority_t) osPriorityNormal,
};
/* Definitions for Start_Task */
osThreadId_t Start_TaskHandle;
const osThreadAttr_t Start_Task_attributes = {
  .name = "Start_Task",
  .stack_size = 1024 * 4,
  .priority = (osPriority_t) osPriorityBelowNormal,
};

/* Private function prototypes -----------------------------------------------*/
/* USER CODE BEGIN FunctionPrototypes */

/* USER CODE END FunctionPrototypes */

void StartDefaultTask(void *argument);
void StartTask(void *argument);

extern void MX_LWIP_Init(void);
void MX_FREERTOS_Init(void); /* (MISRA C 2004 rule 8.1) */

/**
  * @brief  FreeRTOS initialization
  * @param  None
  * @retval None
  */
void MX_FREERTOS_Init(void) {
  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* USER CODE BEGIN RTOS_MUTEX */
  /* add mutexes, ... */
  /* USER CODE END RTOS_MUTEX */

  /* USER CODE BEGIN RTOS_SEMAPHORES */
  /* add semaphores, ... */
  /* USER CODE END RTOS_SEMAPHORES */

  /* USER CODE BEGIN RTOS_TIMERS */
  /* start timers, add new ones, ... */
  /* USER CODE END RTOS_TIMERS */

  /* USER CODE BEGIN RTOS_QUEUES */
  /* add queues, ... */
  /* USER CODE END RTOS_QUEUES */

  /* Create the thread(s) */
  /* creation of defaultTask */
  defaultTaskHandle = osThreadNew(StartDefaultTask, NULL, &defaultTask_attributes);

  /* creation of Start_Task */
  Start_TaskHandle = osThreadNew(StartTask, NULL, &Start_Task_attributes);

  /* USER CODE BEGIN RTOS_THREADS */
  /* add threads, ... */
  /* USER CODE END RTOS_THREADS */

  /* USER CODE BEGIN RTOS_EVENTS */
  /* add events, ... */
  /* USER CODE END RTOS_EVENTS */

}

/* USER CODE BEGIN Header_StartDefaultTask */
/**
  * @brief  Function implementing the defaultTask thread.
  * @param  argument: Not used
  * @retval None
  */
/* USER CODE END Header_StartDefaultTask */
void StartDefaultTask(void *argument)
{
  /* init code for LWIP */

  /* USER CODE BEGIN StartDefaultTask */

  /* Infinite loop */
  for(;;)
  {
    osDelay(1);
  }
  /* USER CODE END StartDefaultTask */
}

/* USER CODE BEGIN Header_StartTask */
/**
* @brief Function implementing the Start_Task thread.
* @param argument: Not used
* @retval None
*/
/* USER CODE END Header_StartTask */
void StartTask(void *argument)
{
  /* USER CODE BEGIN StartTask */
  MX_LWIP_Init();
  printf("Start LWIP!\r\n");
  /* Infinite loop */
  for(;;)
  {
	 vTcpClient_Task();
    osDelay(1);
  }
  /* USER CODE END StartTask */
}

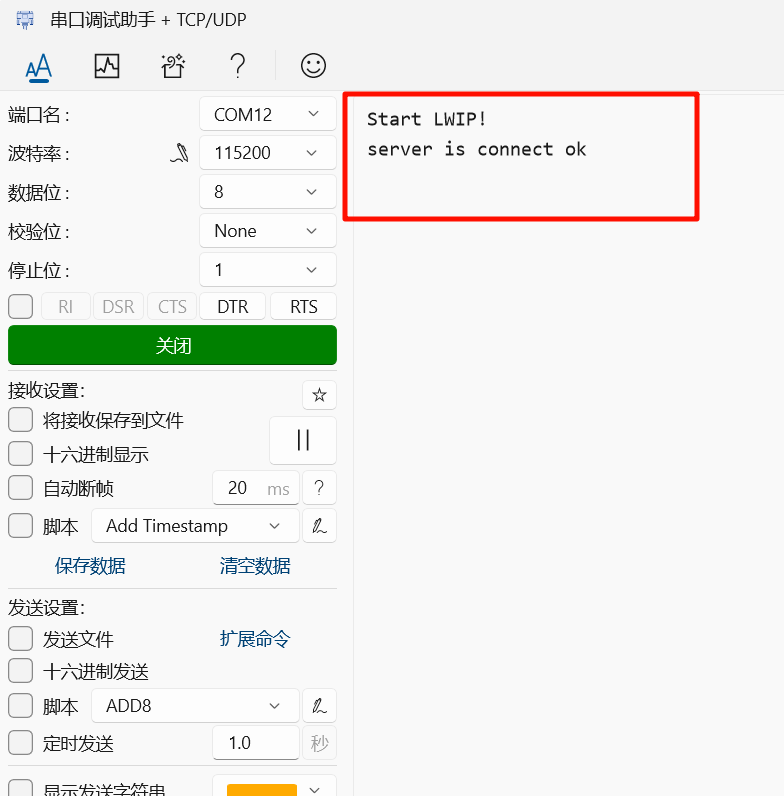

串口调试打印，客户端连接服务器成功
