LVGL（轻量且多功能的图形库）是一个免费且开源的图形库，提供了创建嵌入式 GUI 所需的一切，包括易于使用的图形元素、美丽的视觉效果和低内存占用。
本篇文章采用lvgl8.3.0版本，之前尝试lvgl9.2.2版本失败，因此改为8.3版本，如有大佬使用成功希望出一个详细教程

1.添加lvgl组件

idf.py add-dependency "lvgl/lvgl^8.3.0"

后面为版本号，可以自行修改

idf.py add-dependency "espressif/esp_lvgl_port^2.5.0"

此组件可帮助将 LVGL 与 Espressif 的 LCD 和触摸驱动程序配合使用。它可与任何带有 LCD 显示器的项目一起使用

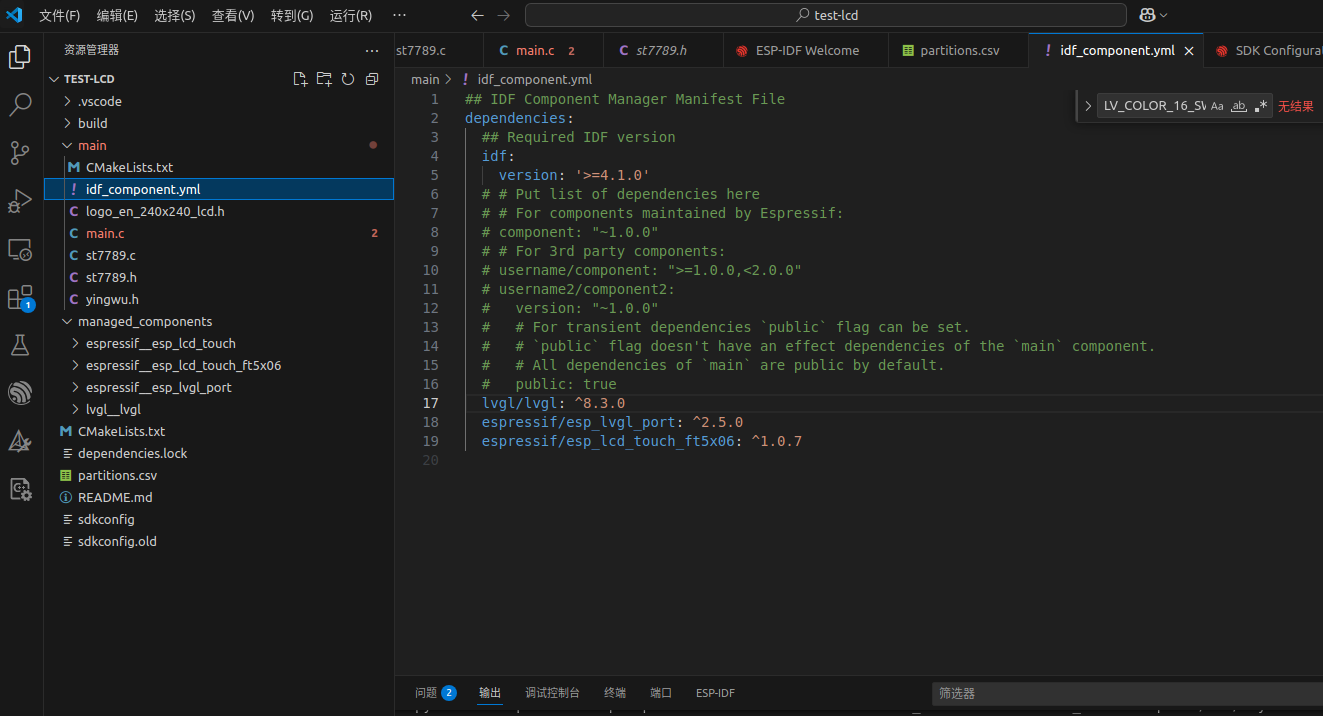

可以在idf_component.yml文件里查看或者直接修改

2.初始化lvgl

具体用法可去 esp_lvgl_port组件官网查看

//初始化lvgl
const lvgl_port_cfg_t lvgl_cfg = ESP_LVGL_PORT_INIT_CONFIG();
esp_err_t err = lvgl_port_init(&lvgl_cfg);

3.添加设备

lcd屏幕

当然，在添加设备前要完成初始化lcd屏幕

const lvgl_port_display_cfg_t disp_cfg = {
      .io_handle = io_handle,
      .panel_handle = lcd_panel_handle,
      .buffer_size = DISP_WIDTH*DISP_HEIGHT,
      .double_buffer = true,
      .hres = DISP_WIDTH,
      .vres = DISP_HEIGHT,
      .monochrome = false,
      .mipi_dsi = false,
      .color_format = LV_COLOR_FORMAT_RGB565,
      .rotation = {
          .swap_xy = false,
          .mirror_x = false,
          .mirror_y = false,
      },
      .flags = {
          .buff_dma = true,
          .swap_bytes = false,
      }
  };
disp_handle = lvgl_port_add_disp(&disp_cfg);

触摸组件

同样先完成初始化

const lvgl_port_touch_cfg_t touch_cfg = {
      .disp = disp_handle,
      .handle = tp,
  };
lv_indev_t* touch_handle = lvgl_port_add_touch(&touch_cfg);

4.案例

这里采用立创实战派的lvgl例程代码，不过我使用的是idf的新版i2c，立创教程用的是旧版

//i2c总线句柄
i2c_master_bus_handle_t bus_handle;
//pca9557句柄
i2c_master_dev_handle_t pca9557_handle;
void bsp_i2c_init(void)
{
    //初始化i2c总线
    i2c_master_bus_config_t i2c_bus_config = {
        .clk_source = I2C_CLK_SRC_DEFAULT,
        .i2c_port = BSP_I2C_NUM,
        .scl_io_num = BSP_I2C_SCL,
        .sda_io_num = BSP_I2C_SDA,
        .glitch_ignore_cnt = 7,
        .flags.enable_internal_pullup = true,
    };

    ESP_ERROR_CHECK(i2c_new_master_bus(&i2c_bus_config, &bus_handle));

    //挂载pca9557设备
    i2c_device_config_t dev_cfg = {
        .dev_addr_length = I2C_ADDR_BIT_LEN_7,				//选择从设备的地址长度
        .device_address = 0x19,								//I2C设备原始地址。（7/10位地址，不含读写位）
        .scl_speed_hz = 100000,								//I2C SCL线路频率
    };

    ESP_ERROR_CHECK(i2c_master_bus_add_device(bus_handle, &dev_cfg, &pca9557_handle));

}

// 读取PCA9557寄存器的值
esp_err_t pca9557_register_read(uint8_t reg_addr, uint8_t *data, size_t len)
{
    return i2c_master_transmit_receive(pca9557_handle,  &reg_addr, 1, data, len, 1000 / portTICK_PERIOD_MS);
}

// 给PCA9557的寄存器写值
esp_err_t pca9557_register_write_byte(uint8_t reg_addr, uint8_t data)
{
    uint8_t write_buf[2] = {reg_addr, data};

    return i2c_master_transmit(pca9557_handle, write_buf, sizeof(write_buf), 1000 / portTICK_PERIOD_MS);
}


void pca9557_init(void)
{
    // 写入控制引脚默认值 DVP_PWDN=1  PA_EN = 0  LCD_CS = 1
    pca9557_register_write_byte(PCA9557_OUTPUT_PORT, 0x05);
    // 把PCA9557芯片的IO1 IO1 IO2设置为输出 其它引脚保持默认的输入
    pca9557_register_write_byte(PCA9557_CONFIGURATION_PORT, 0xf8);
}

// 设置PCA9557芯片的某个IO引脚输出高低电平
esp_err_t pca9557_set_output_state(uint8_t gpio_bit, uint8_t level)
{
    uint8_t data;
    esp_err_t res = ESP_FAIL;

    pca9557_register_read(PCA9557_OUTPUT_PORT, &data, 1);
    res = pca9557_register_write_byte(PCA9557_OUTPUT_PORT, SET_BITS(data, gpio_bit, level));

    return res;
}

// 控制 PCA9557_LCD_CS 引脚输出高低电平 参数0输出低电平 参数1输出高电平
void lcd_cs(uint8_t level)
{
    pca9557_set_output_state(LCD_CS_GPIO, level);
}

// 控制 PCA9557_PA_EN 引脚输出高低电平 参数0输出低电平 参数1输出高电平
void pa_en(uint8_t level)
{
    pca9557_set_output_state(PA_EN_GPIO, level);
}

// 控制 PCA9557_DVP_PWDN 引脚输出高低电平 参数0输出低电平 参数1输出高电平
void dvp_pwdn(uint8_t level)
{
    pca9557_set_output_state(DVP_PWDN_GPIO, level);
}


//初始化LEDC 控制屏幕背光
esp_err_t bsp_display_brightness_init(void)
{
     //准备并应用led PWM定时器配置
     ledc_timer_config_t ledc_timer = {
        .speed_mode       = LEDC_LOW_SPEED_MODE, 	//速度模式（值必须为 LEDC_LOW_SPEED_MODE）
        .duty_resolution  = LEDC_TIMER_10_BIT,		//PWM 占空比分辨率
        .timer_num        = 1,			        	//定时器索引
        .freq_hz          = 5000, 	            	// PWM 信号频率（Hz）
        .clk_cfg          = LEDC_AUTO_CLK			//时钟源
    };
    ESP_ERROR_CHECK(ledc_timer_config(&ledc_timer));

    // 准备并应用LEDC PWM通道配置
    ledc_channel_config_t ledc_channel = {
        .speed_mode     = LEDC_LOW_SPEED_MODE,	//高速模式（仅在esp32上存在）或低速模式
        .channel        = LCD_LEDC_CH,			//LEDC通道
        .timer_sel      = 1,			//选择通道的定时器源
        .intr_type      = LEDC_INTR_DISABLE,	//配置中断
        .gpio_num       = BSP_LCD_BACKLIGHT,  		//LEDC输出的GPIO
        .duty           = 0, 					// LEDC通道占空比
        .hpoint         = 0,						//LEDC通道hpoint值
      	.flags.output_invert = 1				//启用(1)或禁用(0)gpio输出反相
    };
    ESP_ERROR_CHECK(ledc_channel_config(&ledc_channel));

    return ESP_OK;
}

//设置屏幕背光亮度  参数为百分比
esp_err_t bsp_display_brightness_set(int brightness_percent)
{
    if (brightness_percent > 100) {
        brightness_percent = 100;
    } else if (brightness_percent < 0) {
        brightness_percent = 0;
    }

    ESP_LOGI(TAG, "Setting LCD backlight: %d%%", brightness_percent);

    //将百分比转换为10位PWM占空比值（LEDC分辨率设为10位，所以100%对应1023）
    uint32_t duty_cycle = (1023 * brightness_percent) / 100;
    ESP_ERROR_CHECK(ledc_set_duty(LEDC_LOW_SPEED_MODE, LCD_LEDC_CH, duty_cycle));
    ESP_ERROR_CHECK(ledc_update_duty(LEDC_LOW_SPEED_MODE, LCD_LEDC_CH));

    return ESP_OK;
}

//背光熄灭
esp_err_t bsp_display_backlight_off(void)
{
    return bsp_display_brightness_set(0);
}

//背光最亮
esp_err_t bsp_display_backlight_on(void)
{
    return bsp_display_brightness_set(100);
}

static esp_lcd_panel_handle_t panel_handle = NULL;
esp_lcd_panel_io_handle_t io_handle = NULL;
static esp_lcd_touch_handle_t tp;   // 触摸屏句柄
static lv_disp_t *disp;      // 指向液晶屏
static lv_indev_t *disp_indev = NULL; // 指向触摸屏
// 液晶屏初始化
esp_err_t bsp_display_new(void)
{

    esp_err_t ret = ESP_OK;
    // 背光初始化
    ESP_RETURN_ON_ERROR(bsp_display_brightness_init(), TAG, "Brightness init failed");
    // 初始化SPI总线
    ESP_LOGD(TAG, "Initialize SPI bus");
    const spi_bus_config_t buscfg = {
        .sclk_io_num = BSP_LCD_SPI_CLK,
        .mosi_io_num = BSP_LCD_SPI_MOSI,
        .miso_io_num = GPIO_NUM_NC,
        .quadwp_io_num = GPIO_NUM_NC,
        .quadhd_io_num = GPIO_NUM_NC,
        .max_transfer_sz = BSP_LCD_H_RES * BSP_LCD_V_RES * sizeof(uint16_t),
    };
    ESP_RETURN_ON_ERROR(spi_bus_initialize(BSP_LCD_SPI_NUM, &buscfg, SPI_DMA_CH_AUTO), TAG, "SPI init failed");
    // 液晶屏控制IO初始化
    ESP_LOGD(TAG, "Install panel IO");
    const esp_lcd_panel_io_spi_config_t io_config = {
        .dc_gpio_num = BSP_LCD_DC,
        .cs_gpio_num = BSP_LCD_SPI_CS,
        .pclk_hz = BSP_LCD_PIXEL_CLOCK_HZ,
        .lcd_cmd_bits = LCD_CMD_BITS,
        .lcd_param_bits = LCD_PARAM_BITS,
        .spi_mode = 2,
        .trans_queue_depth = 10,
    };
    ESP_GOTO_ON_ERROR(esp_lcd_new_panel_io_spi((esp_lcd_spi_bus_handle_t)BSP_LCD_SPI_NUM, &io_config, &io_handle), err, TAG, "New panel IO failed");
    // 初始化液晶屏驱动芯片ST7789
    ESP_LOGD(TAG, "Install LCD driver");
    const esp_lcd_panel_dev_config_t panel_config = {
        .reset_gpio_num = BSP_LCD_RST,
        .rgb_ele_order = LCD_RGB_ELEMENT_ORDER_RGB,
        .bits_per_pixel = BSP_LCD_BITS_PER_PIXEL,
    };
    ESP_GOTO_ON_ERROR(esp_lcd_new_panel_st7789(io_handle, &panel_config, &panel_handle), err, TAG, "New panel failed");

    esp_lcd_panel_reset(panel_handle);  // 液晶屏复位
    lcd_cs(0);  // 拉低CS引脚
    esp_lcd_panel_init(panel_handle);  // 初始化配置寄存器
    esp_lcd_panel_invert_color(panel_handle, true); // 颜色反转
    esp_lcd_panel_swap_xy(panel_handle, true);  // 显示翻转
    esp_lcd_panel_mirror(panel_handle, true, false); // 镜像

    return ret;

err:
    if (panel_handle) {
        esp_lcd_panel_del(panel_handle);
    }
    if (io_handle) {
        esp_lcd_panel_io_del(io_handle);
    }
    spi_bus_free(BSP_LCD_SPI_NUM);
    return ret;
}


// LCD显示初始化
esp_err_t bsp_lcd_init(void)
{
    esp_err_t ret = ESP_OK;


    ret = bsp_display_new(); // 液晶屏驱动初始化
    lcd_set_color(0x0000); // 设置整屏背景黑色
    ret = esp_lcd_panel_disp_on_off(panel_handle, true); // 打开液晶屏显示
    ret = bsp_display_backlight_on(); // 打开背光显示

    ESP_LOGI(TAG,"over");
    return  ret;
}

static lv_disp_t *bsp_display_lcd_init(void)
{
    /* 初始化液晶屏 */
    bsp_display_new(); // 液晶屏驱动初始化
    lcd_set_color(0xffff); // 设置整屏背景白色
    esp_lcd_panel_disp_on_off(panel_handle, true); // 打开液晶屏显示

    /* 液晶屏添加LVGL接口 */
    ESP_LOGD(TAG, "Add LCD screen");
    const lvgl_port_display_cfg_t disp_cfg = {
        .io_handle = io_handle,
        .panel_handle = panel_handle,
        .buffer_size = BSP_LCD_H_RES * BSP_LCD_DRAW_BUF_HEIGHT,   // LVGL缓存大小
        .double_buffer = false, // 是否开启双缓存
        .hres = BSP_LCD_H_RES, // 液晶屏的宽
        .vres = BSP_LCD_V_RES, // 液晶屏的高
        .monochrome = false,  // 是否单色显示器
        /* Rotation的值必须和液晶屏初始化里面设置的 翻转 和 镜像 一样 */
        .rotation = {
            .swap_xy = true,  // 是否翻转
            .mirror_x = true, // x方向是否镜像
            .mirror_y = false, // y方向是否镜像
        },
        .flags = {
            .buff_dma = false,  // 是否使用DMA 注意：dma与spiram不能同时为true
            .buff_spiram = true, // 是否使用PSRAM 注意：dma与spiram不能同时为true
        }
    };

    return lvgl_port_add_disp(&disp_cfg);
}


// 触摸屏初始化
esp_err_t bsp_touch_new(esp_lcd_touch_handle_t *ret_touch)
{
    /* Initialize touch */
    esp_lcd_touch_config_t tp_cfg = {
        .x_max = BSP_LCD_V_RES,
        .y_max = BSP_LCD_H_RES,
        .rst_gpio_num = GPIO_NUM_NC, // Shared with LCD reset
        .int_gpio_num = GPIO_NUM_NC,
        .levels = {
            .reset = 0,
            .interrupt = 0,
        },
        .flags = {
            .swap_xy = 1,
            .mirror_x = 1,
            .mirror_y = 0,
        },
    };
    esp_lcd_panel_io_handle_t tp_io_handle = NULL;
    esp_lcd_panel_io_i2c_config_t tp_io_config = ESP_LCD_TOUCH_IO_I2C_FT5x06_CONFIG();
    tp_io_config.scl_speed_hz = BSP_I2C_FREQ_HZ; // 设置为总线的100kHz

    ESP_RETURN_ON_ERROR(esp_lcd_new_panel_io_i2c(bus_handle, &tp_io_config, &tp_io_handle), TAG, "");
    ESP_ERROR_CHECK(esp_lcd_touch_new_i2c_ft5x06(tp_io_handle, &tp_cfg, ret_touch));

    return ESP_OK;
}

// 触摸屏初始化+添加LVGL接口
static lv_indev_t *bsp_display_indev_init(lv_disp_t *disp)
{
    /* 初始化触摸屏 */
    ESP_ERROR_CHECK(bsp_touch_new(&tp));
    assert(tp);

    /* 添加LVGL接口 */
    const lvgl_port_touch_cfg_t touch_cfg = {
        .disp = disp,
        .handle = tp,
    };

    return lvgl_port_add_touch(&touch_cfg);
}

// 开发板显示初始化
void bsp_lvgl_start(void)
{
    /* 初始化LVGL */
    lvgl_port_cfg_t lvgl_cfg = ESP_LVGL_PORT_INIT_CONFIG();
    lvgl_port_init(&lvgl_cfg);

    /* 初始化液晶屏 并添加LVGL接口 */
    disp = bsp_display_lcd_init();

    /* 初始化触摸屏 并添加LVGL接口 */
    disp_indev = bsp_display_indev_init(disp);

    /* 打开液晶屏背光 */
    bsp_display_backlight_on();

}
// 显示图片
void lcd_draw_pictrue(int x_start, int y_start, int x_end, int y_end, const unsigned char *gImage)
{
    // 分配内存 分配了需要的字节大小 且指定在外部SPIRAM中分配
    size_t pixels_byte_size = (x_end - x_start)*(y_end - y_start) * 2;
    uint16_t *pixels = (uint16_t *)heap_caps_malloc(pixels_byte_size, MALLOC_CAP_8BIT | MALLOC_CAP_SPIRAM);
    if (NULL == pixels)
    {
        ESP_LOGE(TAG, "Memory for bitmap is not enough");
        return;
    }
    memcpy(pixels, gImage, pixels_byte_size);  // 把图片数据拷贝到内存
    esp_lcd_panel_draw_bitmap(panel_handle, x_start, y_start, x_end, y_end, (uint16_t *)pixels); // 显示整张图片数据
    heap_caps_free(pixels);  // 释放内存
}

// 设置液晶屏颜色
void lcd_set_color(uint16_t color)
{
    // 分配内存 这里分配了液晶屏一行数据需要的大小
    uint16_t *buffer = (uint16_t *)heap_caps_malloc(BSP_LCD_H_RES * sizeof(uint16_t), MALLOC_CAP_8BIT | MALLOC_CAP_SPIRAM);

    if (NULL == buffer)
    {
        ESP_LOGE(TAG, "Memory for bitmap is not enough");
    }
    else
    {
        for (size_t i = 0; i < BSP_LCD_H_RES; i++) // 给缓存中放入颜色数据
        {
            buffer[i] = color;
        }
        for (int y = 0; y < 240; y++) // 显示整屏颜色
        {
            esp_lcd_panel_draw_bitmap(panel_handle, 0, y, 320, y+1, buffer);
        }
        free(buffer); // 释放内存
    }
}

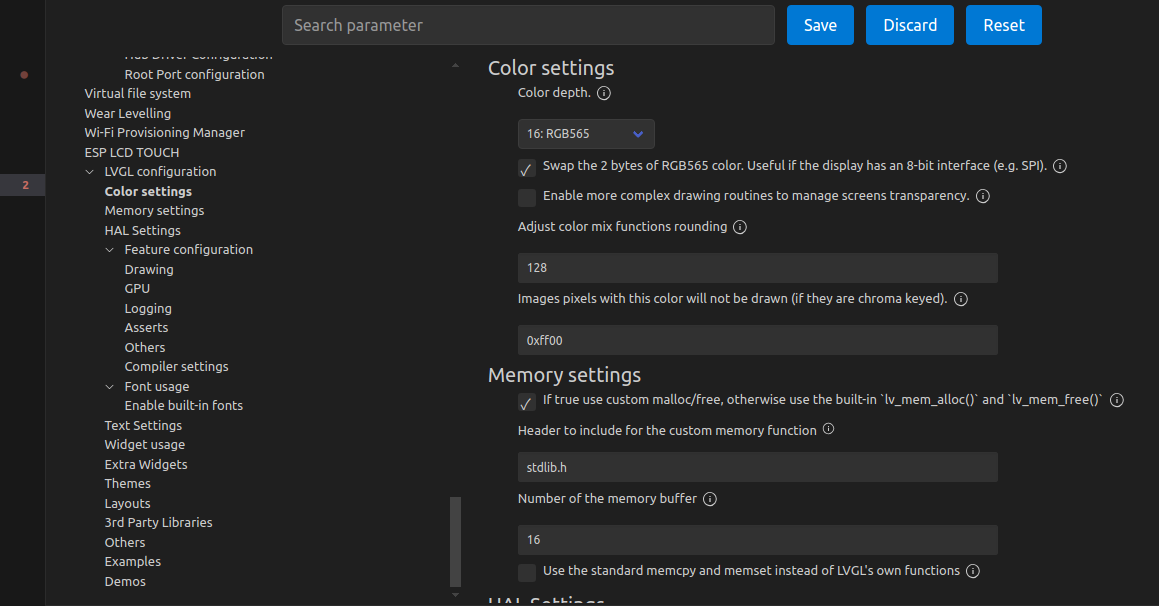

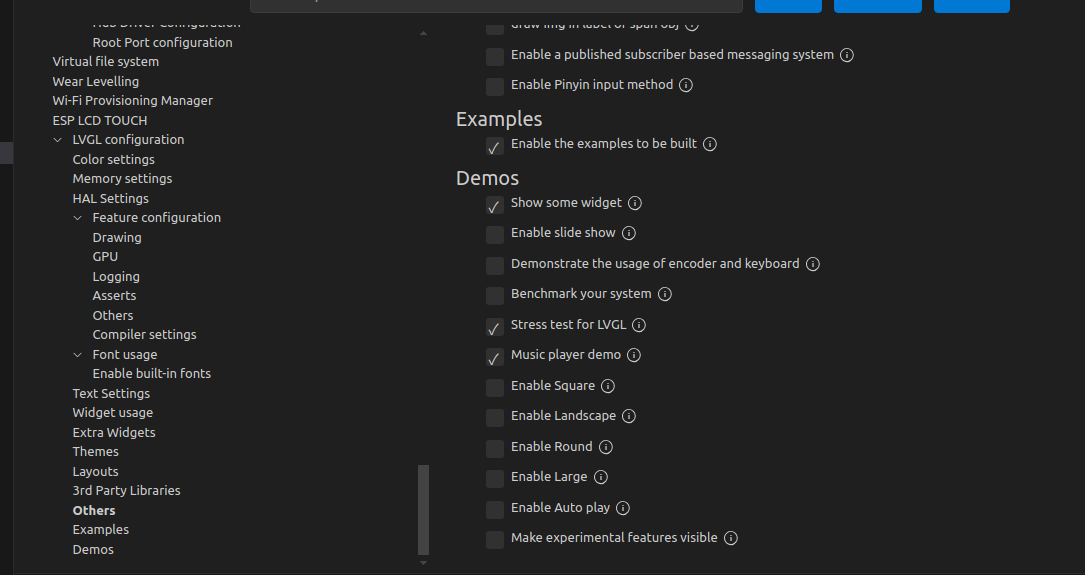

注意SDK设置这里要修改一下，并启动demo，才可以运行demo

void app_main(void)
{
    bsp_i2c_init();  // I2C初始化
    pca9557_init();  // IO扩展芯片初始化
    //bsp_lcd_init();
    bsp_lvgl_start(); // 初始化液晶屏lvgl接口


    //lcd_draw_pictrue(0, 0, 320, 240, gImage_yingwu); // 显示3只鹦鹉图片
    /* 下面5个demos 只打开1个运行 */
    // lv_demo_benchmark();
    // lv_demo_keypad_encoder();
    // lv_demo_music();
    // lv_demo_stress();
    //xTaskCreate(lvgl_task, "lvgl", 4096, NULL, 5, NULL); // 优先级建议≥5
     lv_demo_widgets();
}
