摘要：
随着物流行业的快速发展，客户对物流信息的实时性、可查询性要求越来越高。本文设计并实现了一套基于MySQL数据库的智能物流信息自助查询终端系统，结合硬件终端、后端服务与数据库架构，提供高效、稳定、可扩展的物流信息查询解决方案。系统采用模块化设计，涵盖数据库建模、API接口开发、终端交互逻辑等关键环节，适用于快递网点、校园、社区、商超等场景。

---

一、系统架构概述

本系统采用典型的三层架构：

1. 前端层（自助终端）：基于触摸屏的嵌入式设备（如树莓派 + LCD），运行终端应用，提供用户交互界面。
2. 服务层（后端服务）：使用Python Flask框架构建RESTful API服务，处理终端请求，与数据库交互。
3. 数据层（MySQL数据库）：存储物流订单、运输节点、用户操作日志等核心数据。

+------------------+       HTTP/HTTPS       +----------------+       SQL       +-------------+
| 自助查询终端     | --------------------> | Flask 后端服务  | ------------> | MySQL 数据库 |
| (树莓派/工控机)  | <--------------------- | (Nginx + Gunicorn)| <----------- | (InnoDB引擎) |
+------------------+      JSON响应         +----------------+   查询结果    +-------------+

二、MySQL数据库设计

2.1 数据库选型与配置

选用 MySQL 8.0+，支持JSON字段、窗口函数、全文索引等高级特性，确保高性能与高并发支持。

-- 创建物流查询系统专用数据库
CREATE DATABASE logistics_system DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;

-- 使用数据库
USE logistics_system;

2.2 核心数据表设计

1. 物流订单表（logistics_orders）

存储主订单信息，包含订单号、收发件人、状态等。

CREATE TABLE logistics_orders (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY COMMENT '主键ID',
    tracking_number VARCHAR(50) NOT NULL UNIQUE COMMENT '物流单号',
    sender_name VARCHAR(100) NOT NULL COMMENT '发件人姓名',
    sender_phone VARCHAR(20) COMMENT '发件人电话',
    sender_address TEXT NOT NULL COMMENT '发件人地址',
    receiver_name VARCHAR(100) NOT NULL COMMENT '收件人姓名',
    receiver_phone VARCHAR(20) COMMENT '收件人电话',
    receiver_address TEXT NOT NULL COMMENT '收件人地址',
    weight DECIMAL(5,2) COMMENT '包裹重量(kg)',
    volume DECIMAL(6,2) COMMENT '体积(cm³)',
    product_type ENUM('普通件','易碎品','冷链','贵重品') DEFAULT '普通件' COMMENT '包裹类型',
    status ENUM('已揽收','运输中','派送中','已签收','已拒收','异常') DEFAULT '已揽收' COMMENT '当前状态',
    create_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
    update_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',

    -- 索引优化
    INDEX idx_tracking (tracking_number),
    INDEX idx_status (status),
    INDEX idx_receiver_phone (receiver_phone),
    INDEX idx_create_time (create_time)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='物流订单主表';

2. 物流轨迹表（logistics_trace）

记录每条物流单号的运输轨迹，支持多节点、时间戳。

CREATE TABLE logistics_trace (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY COMMENT '轨迹ID',
    order_id BIGINT UNSIGNED NOT NULL COMMENT '外键：订单ID',
    location VARCHAR(200) NOT NULL COMMENT '当前地点',
    operator VARCHAR(50) COMMENT '操作员/站点',
    operation_type ENUM('揽收','中转','到达','发车','派送','签收','异常') NOT NULL COMMENT '操作类型',
    status_desc VARCHAR(200) NOT NULL COMMENT '状态描述',
    operation_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '操作时间',
    extra_data JSON COMMENT '扩展信息（如温度、湿度、图片URL等）',

    -- 外键约束
    CONSTRAINT fk_trace_order FOREIGN KEY (order_id)
        REFERENCES logistics_orders(id) ON DELETE CASCADE,

    -- 索引优化
    INDEX idx_order_id (order_id),
    INDEX idx_operation_time (operation_time DESC),
    INDEX idx_location (location(10))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='物流轨迹明细表';

3. 终端访问日志表（terminal_access_log）

记录自助终端的查询行为，用于审计与分析。

CREATE TABLE terminal_access_log (
    id BIGINT UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    terminal_id VARCHAR(50) NOT NULL COMMENT '终端设备编号',
    tracking_number VARCHAR(50) NOT NULL COMMENT '查询单号',
    query_type ENUM('单号查询','手机号查询') NOT NULL,
    client_ip VARCHAR(45) COMMENT '客户端IP',
    query_time DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP,
    result_found TINYINT(1) DEFAULT 0 COMMENT '是否查到结果',

    INDEX idx_terminal (terminal_id),
    INDEX idx_query_time (query_time DESC),
    INDEX idx_tracking_query (tracking_number, query_time)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='终端访问日志';

三、后端服务实现（Python Flask）

3.1 环境依赖

pip install flask flask-sqlalchemy pymysql python-dotenv gunicorn

3.2 数据库连接配置（config.py）

import os
from sqlalchemy import create_engine
from sqlalchemy.orm import scoped_session, sessionmaker
from sqlalchemy.ext.declarative import declarative_base

# 数据库连接字符串
DATABASE_URL = "mysql+pymysql://root:your_password@localhost:3306/logistics_system?charset=utf8mb4"

# 创建引擎
engine = create_engine(
    DATABASE_URL,
    pool_size=10,
    max_overflow=20,
    pool_pre_ping=True,  # 连接前检测
    pool_recycle=3600,   # 1小时回收连接
    echo=False  # 生产环境关闭SQL日志
)

# 创建会话
db_session = scoped_session(
    sessionmaker(autocommit=False, autoflush=False, bind=engine)
)

Base = declarative_base()
Base.query = db_session.query_property()

3.3 ORM模型定义（models.py）

from sqlalchemy import Column, Integer, String, Text, DateTime, DECIMAL, Enum, JSON, ForeignKey
from sqlalchemy.orm import relationship
from config import Base
from datetime import datetime

class LogisticsOrder(Base):
    __tablename__ = 'logistics_orders'

    id = Column(Integer, primary_key=True, autoincrement=True)
    tracking_number = Column(String(50), nullable=False, unique=True, index=True)
    sender_name = Column(String(100), nullable=False)
    sender_phone = Column(String(20))
    sender_address = Column(Text, nullable=False)
    receiver_name = Column(String(100), nullable=False)
    receiver_phone = Column(String(20))
    receiver_address = Column(Text, nullable=False)
    weight = Column(DECIMAL(5,2))
    volume = Column(DECIMAL(6,2))
    product_type = Column(Enum('普通件','易碎品','冷链','贵重品'), default='普通件')
    status = Column(Enum('已揽收','运输中','派送中','已签收','已拒收','异常'), default='已揽收')
    create_time = Column(DateTime, default=datetime.utcnow)
    update_time = Column(DateTime, default=datetime.utcnow, onupdate=datetime.utcnow)

    # 关联轨迹
    traces = relationship("LogisticsTrace", back_populates="order", cascade="all, delete-orphan")

class LogisticsTrace(Base):
    __tablename__ = 'logistics_trace'

    id = Column(Integer, primary_key=True, autoincrement=True)
    order_id = Column(Integer, ForeignKey('logistics_orders.id'), nullable=False, index=True)
    location = Column(String(200), nullable=False)
    operator = Column(String(50))
    operation_type = Column(Enum('揽收','中转','到达','发车','派送','签收','异常'), nullable=False)
    status_desc = Column(String(200), nullable=False)
    operation_time = Column(DateTime, default=datetime.utcnow, index=True)
    extra_data = Column(JSON)

    # 反向关联
    order = relationship("LogisticsOrder", back_populates="traces")

class TerminalAccessLog(Base):
    __tablename__ = 'terminal_access_log'

    id = Column(Integer, primary_key=True, autoincrement=True)
    terminal_id = Column(String(50), nullable=False)
    tracking_number = Column(String(50), nullable=False)
    query_type = Column(Enum('单号查询','手机号查询'), nullable=False)
    client_ip = Column(String(45))
    query_time = Column(DateTime, default=datetime.utcnow)
    result_found = Column(Integer, default=0)

3.4 RESTful API 接口（app.py）

from flask import Flask, request, jsonify
from models import LogisticsOrder, LogisticsTrace, TerminalAccessLog
from config import db_session
import json

app = Flask(__name__)

@app.teardown_appcontext
def shutdown_session(exception=None):
    db_session.remove()

# 1. 单号查询接口
@app.route('/api/v1/query/tracking', methods=['GET'])
def query_by_tracking():
    tracking_number = request.args.get('number')
    terminal_id = request.args.get('terminal_id', 'UNKNOWN')
    client_ip = request.remote_addr

    if not tracking_number:
        return jsonify({'code': 400, 'msg': '缺少单号参数'}), 400

    # 记录访问日志
    log_entry = TerminalAccessLog(
        terminal_id=terminal_id,
        tracking_number=tracking_number,
        query_type='单号查询',
        client_ip=client_ip
    )

    # 查询订单
    order = LogisticsOrder.query.filter_by(tracking_number=tracking_number).first()
    if order:
        log_entry.result_found = 1
        # 查询轨迹
        traces = LogisticsTrace.query.filter_by(order_id=order.id)\
                        .order_by(LogisticsTrace.operation_time.desc()).all()
        trace_list = [{
            'location': t.location,
            'operator': t.operator,
            'operation_type': t.operation_type,
            'status_desc': t.status_desc,
            'operation_time': t.operation_time.strftime('%Y-%m-%d %H:%M:%S'),
            'extra_data': t.extra_data
        } for t in traces]

        result = {
            'code': 200,
            'data': {
                'order': {
                    'tracking_number': order.tracking_number,
                    'receiver_name': order.receiver_name,
                    'receiver_phone': order.receiver_phone,
                    'status': order.status,
                    'create_time': order.create_time.strftime('%Y-%m-%d %H:%M:%S')
                },
                'traces': trace_list
            }
        }
    else:
        result = {'code': 404, 'msg': '未找到该物流单号'}

    # 写入日志（异步更佳）
    db_session.add(log_entry)
    db_session.commit()

    return jsonify(result)

# 2. 手机号查询接口（支持模糊匹配收件人电话）
@app.route('/api/v1/query/phone', methods=['GET'])
def query_by_phone():
    phone = request.args.get('phone')
    if not phone or len(phone) < 7:
        return jsonify({'code': 400, 'msg': '手机号格式错误'}), 400

    orders = LogisticsOrder.query.filter(
        LogisticsOrder.receiver_phone.like(f'%{phone}%')
    ).limit(10).all()

    if orders:
        data = [{
            'tracking_number': o.tracking_number,
            'receiver_name': o.receiver_name,
            'status': o.status,
            'create_time': o.create_time.strftime('%Y-%m-%d %H:%M:%S')
        } for o in orders]
        return jsonify({'code': 200, 'data': data})
    else:
        return jsonify({'code': 404, 'msg': '未找到相关订单'})

# 3. 健康检查接口
@app.route('/health', methods=['GET'])
def health_check():
    try:
        db_session.execute('SELECT 1')
        return jsonify({'status': 'OK', 'db': 'connected'}), 200
    except Exception as e:
        return jsonify({'status': 'ERROR', 'db': str(e)}), 500

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=False)

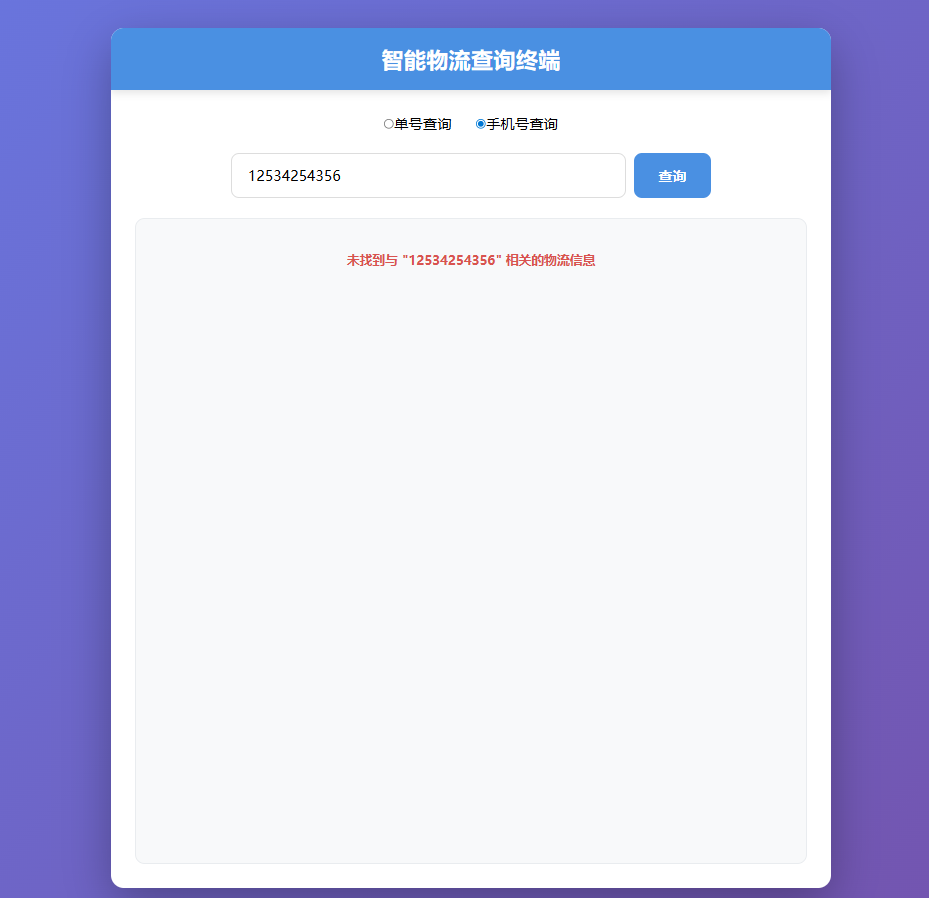

四、自助终端应用（Python + Tkinter 示例）

import tkinter as tk
from tkinter import ttk, messagebox
import requests
import json

class LogisticsTerminalApp:
    def __init__(self, root):
        self.root = root
        self.root.title("智能物流查询终端")
        self.root.geometry("800x600")
        self.root.configure(bg='#f0f0f0')

        self.setup_ui()

    def setup_ui(self):
        # 标题
        title = tk.Label(self.root, text="智能物流查询终端", font=("微软雅黑", 24, "bold"), bg="#4A90E2", fg="white", pady=20)
        title.pack(fill=tk.X)

        # 查询方式选择
        frame = tk.Frame(self.root, bg='#f0f0f0', pady=20)
        frame.pack()

        tk.Label(frame, text="查询方式：", font=("微软雅黑", 14), bg='#f0f0f0').grid(row=0, column=0, padx=10)
        self.query_type = tk.StringVar(value="单号")
        tk.Radiobutton(frame, text="单号查询", variable=self.query_type, value="单号", font=("微软雅黑", 12)).grid(row=0, column=1)
        tk.Radiobutton(frame, text="手机号查询", variable=self.query_type, value="手机", font=("微软雅黑", 12)).grid(row=0, column=2)

        # 输入框
        tk.Label(self.root, text="请输入：", font=("微软雅黑", 14), bg='#f0f0f0').pack(pady=10)
        self.entry = tk.Entry(self.root, font=("微软雅黑", 16), width=30)
        self.entry.pack(pady=10)
        self.entry.focus()

        # 查询按钮
        btn = tk.Button(self.root, text="查询", font=("微软雅黑", 16), bg="#4A90E2", fg="white", command=self.query)
        btn.pack(pady=20)

        # 结果显示区
        self.result_frame = tk.Frame(self.root, bg='white', relief=tk.SUNKEN, bd=1)
        self.result_frame.pack(fill=tk.BOTH, expand=True, padx=20, pady=10)
        self.result_text = tk.Text(self.result_frame, font=("Consolas", 12), wrap=tk.WORD)
        self.scrollbar = ttk.Scrollbar(self.result_frame, orient=tk.VERTICAL, command=self.result_text.yview)
        self.result_text.configure(yscrollcommand=self.scrollbar.set)
        self.result_text.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)
        self.scrollbar.pack(side=tk.RIGHT, fill=tk.Y)

    def query(self):
        query_value = self.entry.get().strip()
        if not query_value:
            messagebox.showwarning("提示", "请输入查询内容")
            return

        try:
            if self.query_type.get() == "单号":
                url = f"http://your-server-ip:5000/api/v1/query/tracking?number={query_value}&terminal_id=T001"
                response = requests.get(url, timeout=10)
                data = response.json()

                if data['code'] == 200:
                    order = data['data']['order']
                    traces = data['data']['traces']
                    result = f"【物流单号】: {order['tracking_number']}\n"
                    result += f"【收件人】: {order['receiver_name']}\n"
                    result += f"【当前状态】: {order['status']}\n\n"
                    result += "=== 物流轨迹 ===\n"
                    for t in traces:
                        result += f"{t['operation_time']}  {t['location']}  {t['status_desc']}\n"
                else:
                    result = f"查询失败：{data.get('msg', '未知错误')}"

            else:  # 手机号查询
                url = f"http://your-server-ip:5000/api/v1/query/phone?phone={query_value}"
                response = requests.get(url, timeout=10)
                data = response.json()
                if data['code'] == 200:
                    orders = data['data']
                    result = "匹配的物流单号：\n"
                    for o in orders:
                        result += f"{o['tracking_number']} - {o['status']} ({o['create_time']})\n"
                else:
                    result = f"未找到相关订单"

            self.result_text.delete(1.0, tk.END)
            self.result_text.insert(tk.END, result)

        except requests.exceptions.RequestException as e:
            messagebox.showerror("网络错误", str(e))
        except Exception as e:
            messagebox.showerror("错误", str(e))

if __name__ == "__main__":
    root = tk.Tk()
    app = LogisticsTerminalApp(root)
    root.mainloop()

五、部署与优化建议

5.1 部署方案

• 数据库服务器：独立部署，开启二进制日志（binlog），配置主从复制。
• 后端服务：使用 gunicorn + nginx 部署，支持负载均衡。
• 终端设备：树莓派4B + 10寸触摸屏，预装终端应用开机自启。

5.2 性能优化

• 索引优化：对 tracking_number, receiver_phone, operation_time 建立复合索引。
• 查询缓存：使用 Redis 缓存热点单号查询结果（TTL 5分钟）。
• 分库分表：单表超千万行时，按 create_time 分表或分库。

5.3 安全措施

• API 接口增加 Token 鉴权。
• 数据库连接使用 SSL 加密。
• 终端应用禁止 USB 调试与ADB。

---

六、总结

本文详细设计并实现了基于MySQL的智能物流自助查询终端系统，涵盖数据库建模、后端API、终端交互三大模块。系统具备高可用性、可扩展性与良好用户体验，可广泛应用于各类物流场景。未来可结合OCR识别、语音播报、人脸识别等功能进一步提升智能化水平。
